Covrit®
Gates & Walls
MAKE BEAUTY A PRIORITY
Covrit® Gates & Walls are elegant, durable, and long-lasting screening solutions for the modern business with a product line designed to hide, protect, or partition anything on your property.
NO FOOTINGS NECESSARY
Mounts directly to a concrete slab
Wide selection of designs
Suits any and every budget or style
Nationwide installation
Turn-key Solutions
COVRIT WALL INFILL STYLES
Engineered Wood Composite or PVC Plank Infill Series
Our 1-inch thick composite or PVC plank infills are the original Covrit wall infill choice and remain a great choice today. Highly durable and resistant to stains, mold, and mildew, these no-maintenance planks will continue to look great even after a decade of exposure to the elements. Plus, you get woodgrain looks with none of the maintenance of real wood.
Vertical Plank
(Standard Stiffener)
(Standard Stiffener)
VERTICAL PLANK WITH STANDARD STIFFENER INFILL SPECS
- Engineered Wood Material:
- Woodgrain surface 2-sided planks are 1” thick 100% cellular PVC
- Woodgrain surface 1-sided planks are 1” thick composite LLDPE
- Metal Material:
- 1/2" Extruded Aluminum Stiffener
- Heights up to 14’
VERTICAL PLANK INFILL WITH STANDARD STIFFENER CROSS-SECTION
Vertical Plank
(Wide Stiffener)
(Wide Stiffener)
Vertical PLANK WITH WIDE STIFFENER INFILL SPECS
- Engineered Wood Material:
- Woodgrain surface 2-sided planks are 1” thick 100% cellular PVC
- Woodgrain surface 1-sided planks are 1” thick composite LLDPE
- Metal Material:
- 2 1/2" Extruded Aluminum Stiffener
- Heights up to 14’
Vertical PLANK WITH WIDE STIFFENER INFILL CROSS-SECTION

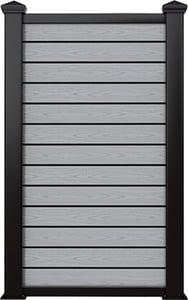

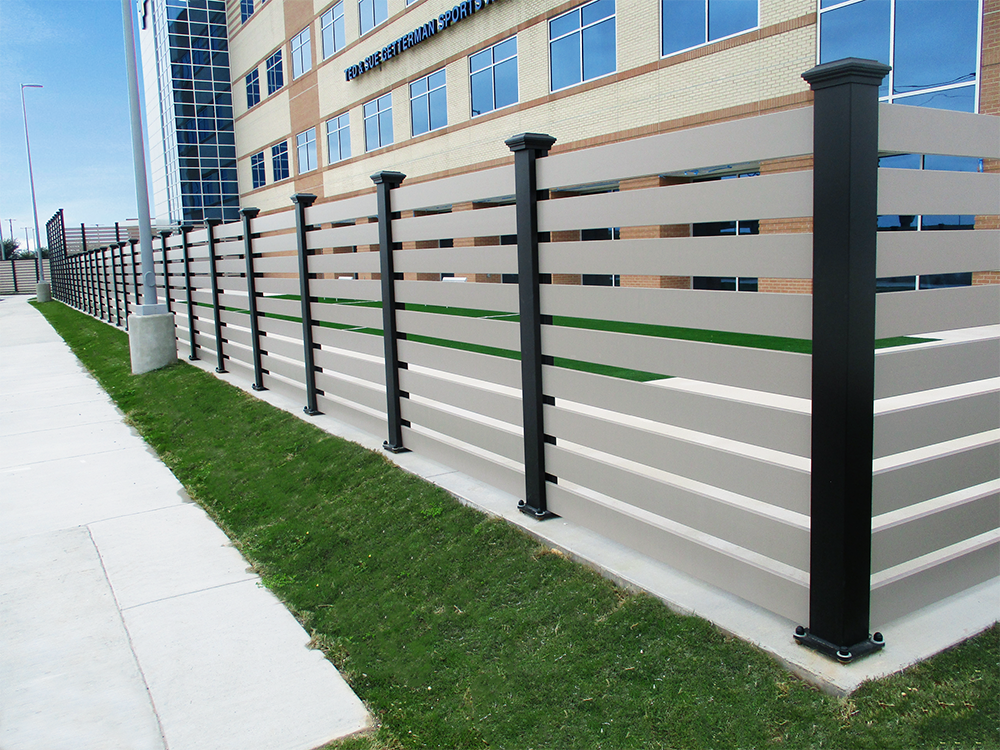

Horizontal Plank
(Standard Stiffener)
(Standard Stiffener)
Horizontal PLANK WITH STANDARD STIFFENER INFILL SPECS
- Engineered Wood Material:
- Woodgrain surface 2-sided planks are 1” thick 100% cellular PVC
- Woodgrain surface 1-sided planks are 1” thick composite LLDPE
- Metal Material:
- 1/2" Extruded Aluminum Stiffener
- Heights up to 14'
Horizontal PLANK INFILL WITH STANDARD STIFFENER CROSS-SECTION
Horizontal Plank
(Wide Stiffener)
(Wide Stiffener)
Horizontal PLANK WITH WIDE STIFFENER INFILL SPECS
- Engineered Wood Material:
- Woodgrain surface 2-sided planks are 1” thick 100% cellular PVC
- Woodgrain surface 1-sided planks are 1” thick composite LLDPE
- Metal Material:
- 2 1/2" Extruded Aluminum Stiffener
- Heights up to 14’
Horizontal PLANK WITH WIDE STIFFENER INFILL CROSS-SECTION

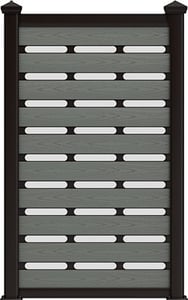

Ventilated PlankWall
Ventilated PLANKWall INFILL SPECS
- Engineered Wood Material:
- Woodgrain surface 2-sided planks are 1” thick 100% cellular PVC
- Woodgrain surface 1-sided planks are 1” thick composite LLDPE
- Metal Material: 2 1/2" Extruded Aluminum Stiffener
- Perforation: 1/8” Diameter hole size, 1/4” center-to-center spacing, 60 Degree staggered centers
- Visual: 23% open areas
- Heights up to 14’
Ventilated PLANKWall INFILL CROSS-SECTION

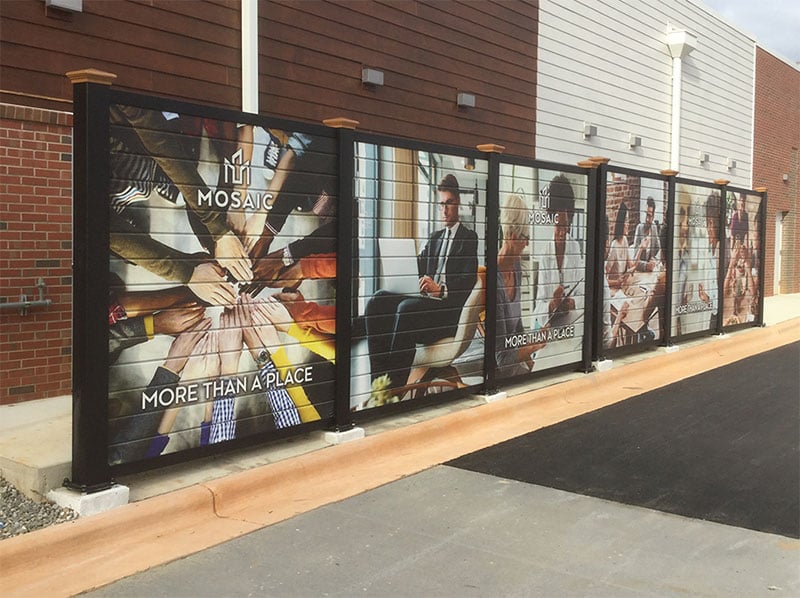

PlankArt®
PlankArt® INFILL SPECS
- Engineered Wood Material:
- Woodgrain surface 2-sided planks are 1” thick 100% cellular PVC
- Woodgrain surface 1-sided planks are 1” thick composite LLDPE
- Metal Material:
- 1/2" Extruded Aluminum Stiffener
- Graphic: Digitally printed with UV resistant Nazdar ink
- Heights up to 14’
PLANKART® WITH STANDARD STIFFENER CROSS-SECTION
Unlock a world of limitless possibilities with our premier printing services! Experience the ultimate customization with our exclusive imprinting options for fence components, showcasing designs tailored to your unique Project.
Quick Ship samples available upon request
ASHWOOD
Cedar
SEQUOIA
Slate
Swatches viewed on a computer screen or on printed material are intended to be a guide to our product color choices. For best results, contact us to request material samples that will provide true color representation.
Quick Ship samples available upon request
BROWNSTONE
KONA
SLATE GRAY
ENGLISH WALNUT
COASTLINE
WEATHERED TEAK
FRENCH WHITE OAK
DARK HICKORY
Swatches viewed on a computer screen or on printed material are intended to be a guide to our product color choices. For best results, contact us to request material samples that will provide true color representation.
Alabaster
white Satin
Putty
Almond
Shadow Gray
Oyster
Slate Gray
Silver Satin
Mansard Brown
Dark Bronze
Forest Green
Electric Black
Slate Blue
Terracotta
Black Textured
City Green Textured
City Brown Textured
NightHawk Textured
Swatches viewed on a computer screen or on printed material are intended to be a guide to our product color choices. For best results, contact us to request material samples that will provide true color representation.
Metal Infill Series
Opt for a modern industrial look with our selection of metal infills. Create a cohesive and stylish look by matching our metal paneled dumpster surrounds with the rest of your property. Our newest heavy-duty Slat Wall offering comes in both 4” and 6” wide planks. We also offer custom screen walls and gates in the same material, making it easy to coordinate your other screening efforts including HVAC units, pool pumps, maintenance yards, and service doors.

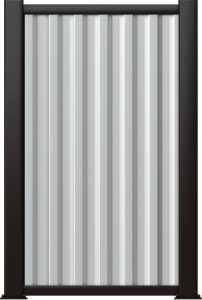

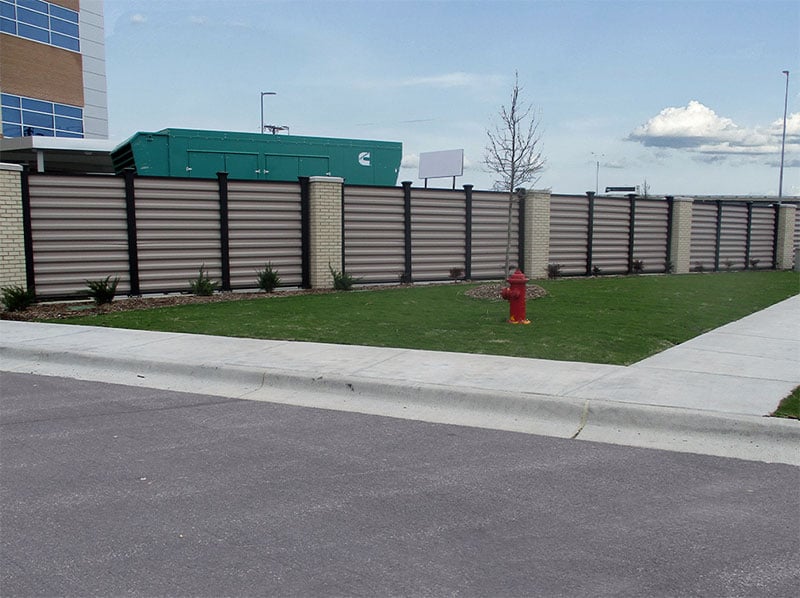

7.2 RIB
7.2 RIB INFILL SPECS
- Material: Smooth aluminum, 3003 H14 alloy
- Thickness: .050”
- Finish: 4000 Series powder finish on both sides
7.2 RIB CROSS-SECTION
PERFORATED 7.2 RIB
Perforated 7.2 RIB INFILL SPECS
- Material: Perforated aluminum, 3003 H14 alloy
- Thickness: .063”
- Perforation: 1/8” Diameter hole size, 1/4” center-to-center spacing, 60 Degree staggered centers
- Visual: 23% Open Area
- Finish: 4000 Series powder finish on both sides
Perforated 7.2 RIB CROSS-SECTION
Planar
Planar INFILL Specs
- Material: .090 Aluminum
- Finish: 4000 Series powder finish on both sides
Planar Cross-Section
TRUE LOUVER
TRUE LOUVER INFILL SPECS
- Material: Extruded aluminum, 6063-T6 alloy
- Thickness: .065” Wall
- Blades: 3 1/4” (H) Z-Blades – Nominal
- Finish: 4000 Series powder finish on both sides
TRUE LOUVER CROSS-SECTION

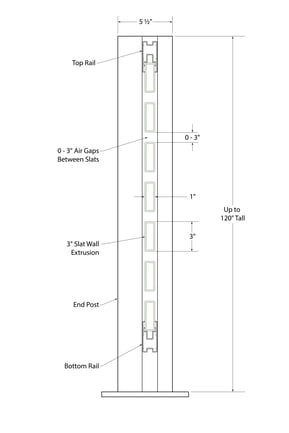

1X4 SLAT WALL
1X4 SLAT WALL INFILL Specs
- Material: Extruded aluminum, 6063-T6 alloy
- Thickness: .080” Wall
- Spacing: 0-3 Inches, varies by wall height
- Finish: 4000 Series powder finish on both sides

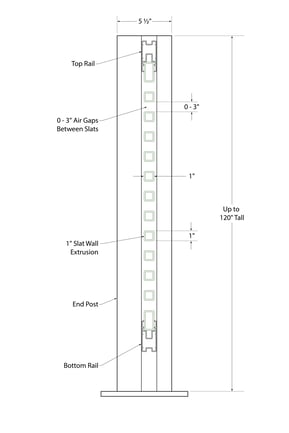

1X4 SLAT WALL CROSS-SECTION
1X6 SLAT WALL
1X6 SLAT WALL INFILL Specs
- Material: Extruded aluminum, 6063-T6 alloy
- Thickness: .100” Wall
- Spacing: 0-3 Inches, varies by wall height
- Finish: 4000 Series powder finish on both sides
1X6 SLAT WALL Cross-Section
Varying Size Slat Wall
Varying Size SLAT WALL INFILL Specs
- Material: Extruded aluminum, 6063-T6 alloy
- 1x4 Thickness: .080” Wall
- 1x6 Thickness: .100” Wall
- Spacing: 0-3 Inches, varies by wall height
- Finish: 4000 Series powder finish on both sides
VARYING SIZE SLAT WALL CROSS-SECTION
Alabaster
white Satin
Putty
Almond
Shadow Gray
Oyster
Slate Gray
Silver Satin
Mansard Brown
Dark Bronze
Forest Green
Electric Black
Slate Blue
Terracotta
Black Textured
City Green Textured
City Brown Textured
NightHawk Textured
Swatches viewed on a computer screen or on printed material are intended to be a guide to our product color choices. For best results, contact us to request material samples that will provide true color representation.
NatureScreen® Infill Series
Put plants center stage with NatureScreen styles that include standard Double Mesh Trellis (DMT), Graphic Mesh Trellis (GMT), and our newest—and most economical—Single Mesh Trellis (SMT/SMT E) system. Each of these products can be incorporated into our Covrit® Wall Systems for projects needing a natural organic plant-based screen wall.

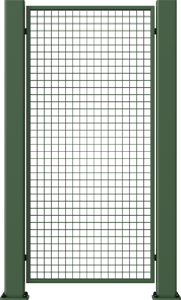

NATURESCREEN® DMT
(Double Mesh Trellis)
(Double Mesh Trellis)
Naturescreen® DMT INFILL SPECS
- Frame: 3” Deep powder-coated extruded aluminum frame
- Wire Gauge: 10ga Galfan® coated wire mesh
- Mesh Grid: 2”x2” Standard mesh grid options
- Multiple mesh grid options available
- Heights up to 14’
- Up to 60” span between posts
Naturescreen® DMT CROSS-SECTION

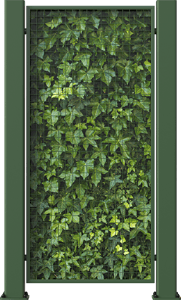

NATURESCREEN® GMT
(Graphic Mesh Trellis)
(Graphic Mesh Trellis)
Naturescreen® GMT INFILL SPECS
- Frame: 3” Deep powder coated extruded aluminum frame
- Wire Gauge: 10ga Galfan® coated wire mesh
- Mesh Grid: 2”x2” Standard mesh grid options
- Graphic: 3mm ACM digitally graphic panel printed with UV resistant Nazdar ink
- Multiple mesh grid options available
- Heights up to 14’
- Up to 60” span between posts
Naturescreen® GMT CROSS-SECTION

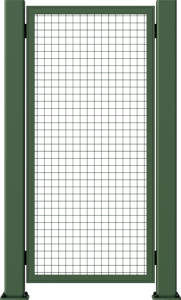

NATURESCREEN® SMT
(Single Mesh Trellis)
(Single Mesh Trellis)
Naturescreen® SMT INFILL SPECS
- Frame: 1” x 2-1/4” Powder coated extruded aluminum frame
- Wire Gauge: 6ga Galfan® coated wire mesh
- Mesh Grid: 2”x2” Standard mesh grid options
- Multiple mesh grid options available
- Heights up to 14’
- Up to 60” span between posts
Naturescreen® SMT CROSS-SECTION
NATURESCREEN® SMT E
(Single Mesh Trellis E)
(Single Mesh Trellis E)
Naturescreen® SMT E INFILL SPECS
- Frame: 1” x 2-1/4” Powder coated extruded aluminum frame
- Wire Gauge: 8ga Galfan® coated wire mesh
- Mesh Grid: 2”x2” Standard mesh grid options
- Multiple mesh grid options available
- Heights up to 14’
- Up to 60” span between posts
Naturescreen® SMT E CROSS-SECTION
Alabaster
white Satin
Putty
Almond
Shadow Gray
Oyster
Slate Gray
Silver Satin
Mansard Brown
Dark Bronze
Forest Green
Electric Black
Slate Blue
Terracotta
Black Textured
City Green Textured
City Brown Textured
NightHawk Textured
Swatches viewed on a computer screen or on printed material are intended to be a guide to our product color choices. For best results, contact us to request material samples that will provide true color representation.
Natural Wood & Stone Infill Series
Natural hardwoods and cultured stone offer beauty suited for a traditional, sophisticated look. We source the best grades of hardwood for every project. We’ve also engineered a simple way to add the look of cultured stone to an enclosure or screen wall and can’t wait to show it to you. Select from multiple colors and styles to complement your site.
Cedar
(Horizontal Plank with Standard Stiffener)
(Horizontal Plank with Standard Stiffener)
NATURAL WOOD INFILL SPECS
- Material: Cedar
- Thickness: 1”
- Up to 72” spans between posts
- Heights up to 14’
- Please note that woodgrain patterns and colors may vary naturally, resulting in unique and distinct characteristics for each piece. This variability is a natural feature of hardwood and adds to the beauty and individuality of our products.
NATURAL WOOD CROSS-SECTION
Ipe
(Horizontal Plank with Standard Stiffener)
(Horizontal Plank with Standard Stiffener)
NATURAL WOOD INFILL SPECS
- Material: Ipe
- Thickness: 1”
- Up to 72” spans between posts
- Heights up to 14’
- Please note that woodgrain patterns and colors may vary naturally, resulting in unique and distinct characteristics for each piece. This variability is a natural feature of hardwood and adds to the beauty and individuality of our products.
NATURAL WOOD CROSS-SECTION
Tigerwood
(Horizontal Plank with Wide Stiffener)
(Horizontal Plank with Wide Stiffener)
NATURAL WOOD INFILL SPECS
- Material: Tigerwood
- Thickness: 1”
- Up to 72” spans between posts
- Heights up to 14’
- Please note that woodgrain patterns and colors may vary naturally, resulting in unique and distinct characteristics for each piece. This variability is a natural feature of hardwood and adds to the beauty and individuality of our products.
NATURAL WOOD CROSS-SECTION
Cumaru
(Horizontal Plank with Wide Stiffener)
(Horizontal Plank with Wide Stiffener)
NATURAL WOOD INFILL SPECS
- Material: Cumaru
- Thickness: 1”
- Up to 72” spans between posts
- Heights up to 14’
- Please note that woodgrain patterns and colors may vary naturally, resulting in unique and distinct characteristics for each piece. This variability is a natural feature of hardwood and adds to the beauty and individuality of our products.
NATURAL WOOD CROSS-SECTION
Garapa
(Horizontal Plank with Wide Stiffener)
(Horizontal Plank with Wide Stiffener)
NATURAL WOOD INFILL SPECS
- Material: Garapa
- Thickness: 1”
- Up to 72” spans between posts
- Heights up to 14’
- Please note that woodgrain patterns and colors may vary naturally, resulting in unique and distinct characteristics for each piece. This variability is a natural feature of hardwood and adds to the beauty and individuality of our products.
NATURAL WOOD CROSS-SECTION
Versetta Stone
(Tight Cut)
(Tight Cut)
VERSETTA STONE TIGHT CUT INFILL SPECS
- Material: 2” Textured Flat Metal Series panel plus Versetta Stone or Brick thickness
- Up to 6’ spans between posts
- Heights up to 14’
- Versetta Stone Color Options
VERSETTA STONE TIGHT CUT CROSS-SECTION
Versetta Stone
(Ledgestone)
(Ledgestone)
VERSETTA STONE LEDGESTONE INFILL SPECS
- Material: 2” Textured Flat Metal Series panel plus Versetta Stone
- Up to 6’ spans between posts
- Heights up to 14’
- Versetta Stone Color Options
VERSETTA STONE LEDGESTONE CROSS-SECTION
Brick
BRICK INFILL SPECs
- Material: 2” Textured Flat Metal Series panel plus Brick thickness
- Up to 6’ spans between posts
- Heights up to 14’
BRICK INFILL CROSS-SECTION

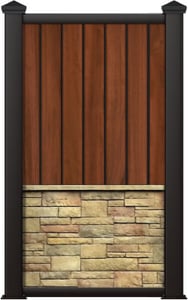

Ipe Wood & Versetta Stone
IPE WOOD & VERSETTA STONE INFILL SPECS
- Natural Wood Material: Cedar, Ipe, Tigerwood, Garapa & Cumaru options available
- Stone Material: 2” Textured Flat Metal Series panel plus Versetta Stone
- Versetta Stone Color Options
IPE WOOD & VERSETTA STONE Cross-Section
Ipe
Cedar
Tigerwood
Cumaru
Garapa
Swatches viewed on a computer screen or on printed material are intended to be a guide to our product color choices. For best results, contact us to request material samples that will provide true color representation. Please note that woodgrain patterns and colors may vary naturally, resulting in unique and distinct characteristics for each piece. This variability is a natural feature of hardwood and adds to the beauty and individuality of our products.
Alabaster
white Satin
Putty
Almond
Shadow Gray
Oyster
Slate Gray
Silver Satin
Mansard Brown
Dark Bronze
Forest Green
Electric Black
Slate Blue
Terracotta
Black Textured
City Green Textured
City Brown Textured
NightHawk Textured
Swatches viewed on a computer screen or on printed material are intended to be a guide to our product color choices. For best results, contact us to request material samples that will provide true color representation.

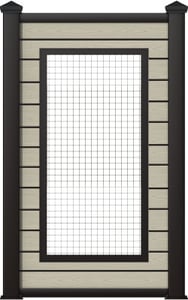

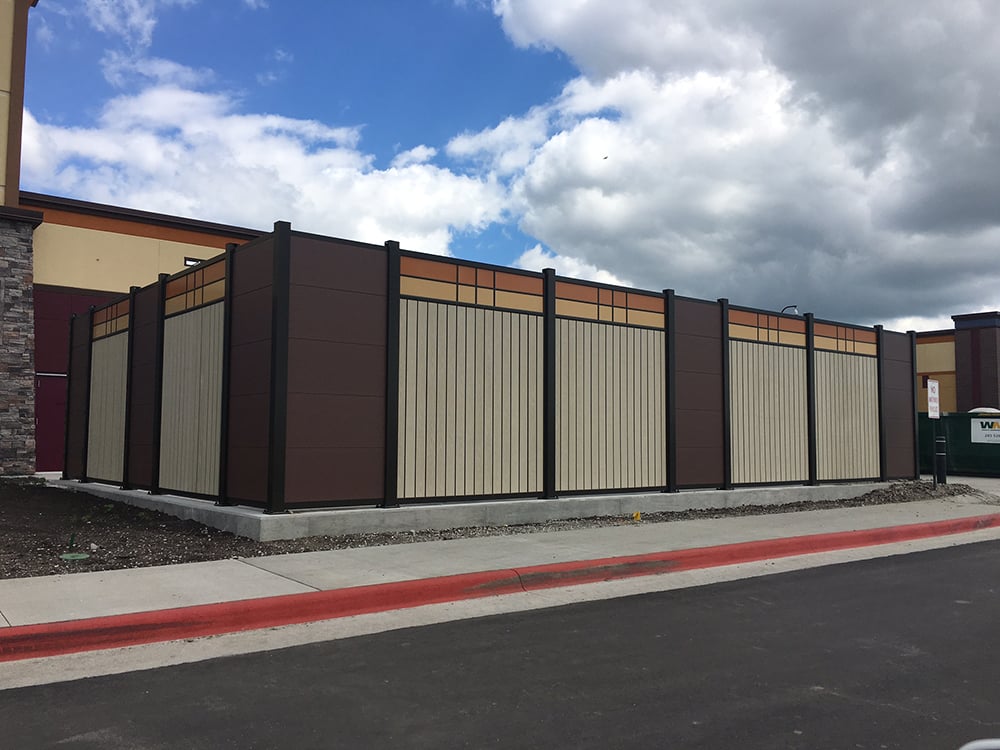

Create Your Own
Our modular system allows an architect or designer to mix a variety of wall styles to create a truly unique look. And our state-of-the-art manufacturing facilities allow us to turn those ideas into reality. So think big, because we’re ready.
Post Mounting Options
Discover our new post installation options for unmatched versatility. Opt for the reliable and trusted Hilti™ Epoxy Anchors, ensuring secure and long-lasting installations. Achieve a clean and seamless finish by directly burying your posts. Alternatively, you have the freedom to supply your own fastening system for customization and compatibility. Experience effortless and adaptable post installation with our range of options.
Surface Mounted
(Hilti)
Mount posts into an existing pad using Hilti™ epoxy anchors.
(Preferred method)
Surface Mounted
(Customer Supplied)
Customer provides their own Surface fastening system to mount into existing pad.
Post Embedment
(Direct Bury)
Posts are embedded into a concrete foundation.
WALL & GATE ENHANCEMENTS & ACCESSORIES
Post Cap Options

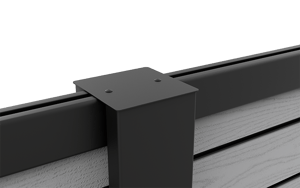

Fitted
(Metal)

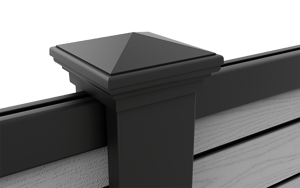

Pyramid hip
(Plastic Resin)

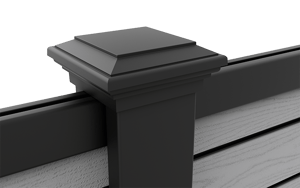

Plateau cap
(Plastic Resin)
Pyramid
(Metal)

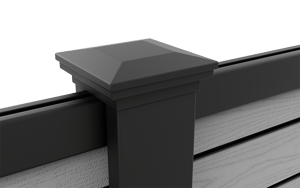

Shallow Hip
(Metal)

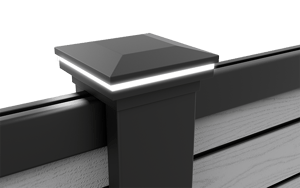

Shallow Hip with lighting
(Metal)
Pole Covers
Protect your investment and give your poles a sleek, polished look with our powder-coated pole covers. Made of durable .090 aluminum, our covers perfectly match your frame and conceal unsightly mounting screws at the feet of your poles.
Pole Cover
Custom Cutouts
Adding cutouts or decorative elements to your enclosure or gates is as much about a little showing off as it is simple function. Think visual interest for a wall section or gate. The function part? It can also create a view port for security purposes or ventilation for enclosed equipment. Our team loves the unique ideas that architects and designers have come up with. Share your ideas with our team. We’re ready to bring them to life.
CUSTOMIZE WITH AFFIX

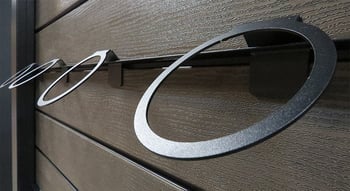

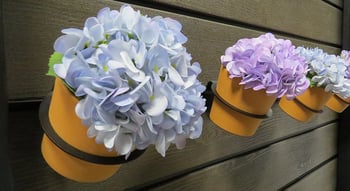

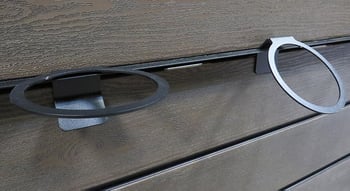

The new Affix stiffener system brings added versatility to Covrit® Enclosures, featuring a channel stiffener that allows you to attach accessories directly to the wall. Add appealing and functional elements such as NatureScreen® Trellis Systems, Eclipse™ decorative laser-cut panels, and more!
Ready to discuss your project?
So are we.
Connecting with one of our project managers is easy. Reach out today to get started.

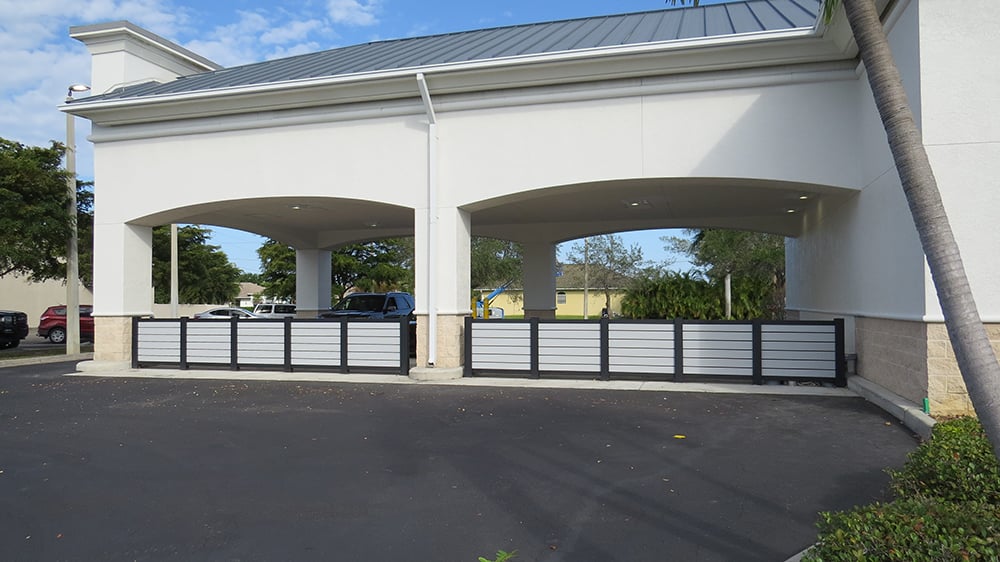

Covrit® Gates & Walls PROJECT GALLERY
READY TO START YOUR PROJECT?
Our project managers and product experts are here to help every step of the way, from design to installation.
